Galvanized gabion boxes

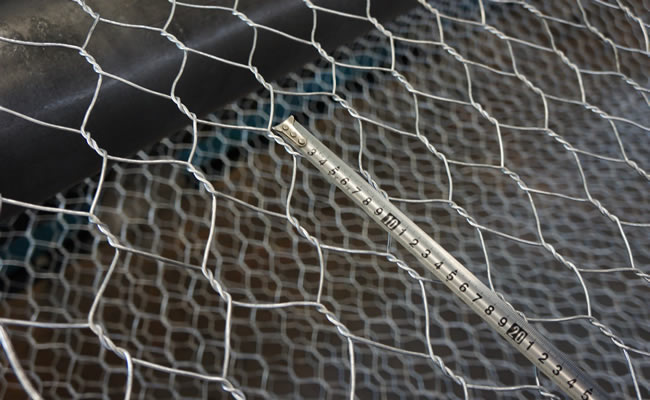

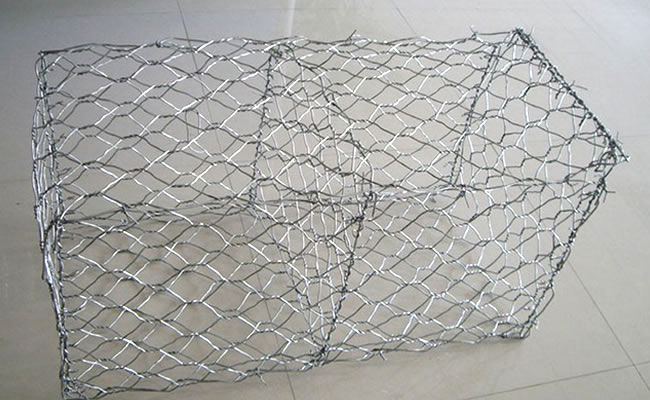

Gabion box Gabion  mesh are filled with rock at the project site to form flexible, permeable, monolithic structures used for emergency and river training works where local conditions require fast installation or where the water does not allow for easy access to the site and where underwater installation is necessary.
The Gabion box have the following characteristics :
1.Economic. Just fill the stone into the gabions and seal it.
2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
5. Good permeation can prevent the damage by hydrostatic.
6. Less transport freight. It can be folded together for transport and further installation.
7. No collapse even under big scope of deforming.
Gabion box   Application:
1. Control and guide of water or flood
2. Preventing of rock breaking
3. Rock fall protection
4. Water and soil protection
5. Bridge protection
6. Strengthening structure of soil
7. Protection engineering of seaside area.
gabion box Packing

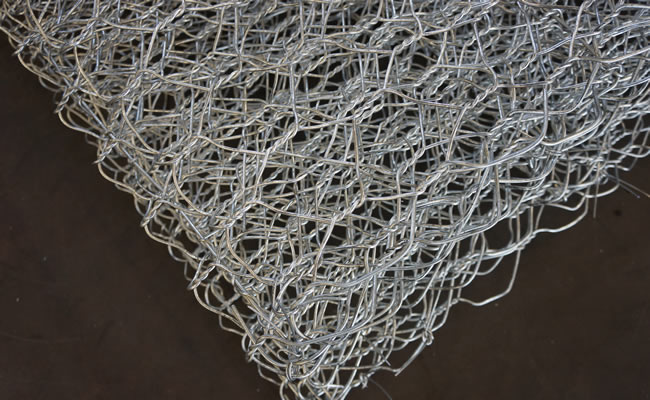

Bulk packing or in pallet. for Gabion box
NOTE: We could offer training on normal operation in our factory

Type Opening(mm) Mesh Wire diameter(mm) Edge wire diameter(mm) Binding wire diameter(mm) Max width(m)
FWM60 60x80 2.0-2.8 3.0-4.0 2.0-2.0 4 meters
FWM80 80x100 2.0-3.0 3.0-4.0 2.0-2.0 4 meters
FWM80W 80x120 2.0-3.0 3.0-4.0 2.0-2.0 4 meters
FWM100 100x120 2.0-3.0 3.0-4.0 2.0-2.0 4 meters
FWM100W 100x150 2.0-3.0 3.0-4.0 2.0-2.0 4 meters
FWM120 120x150 2.0-3.0 3.0-4.0 2.0-2.0 4 meters
