Welded Wire Mesh Gabion

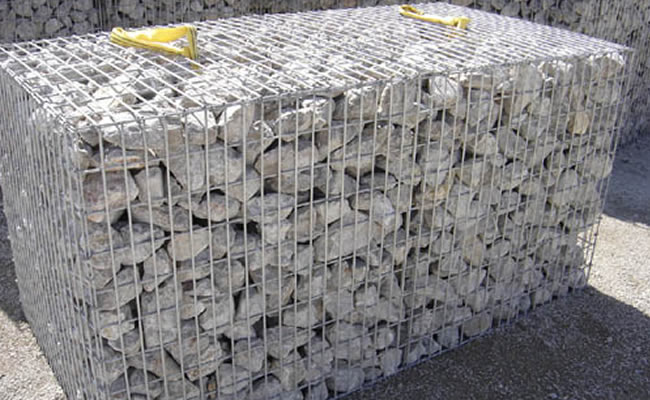

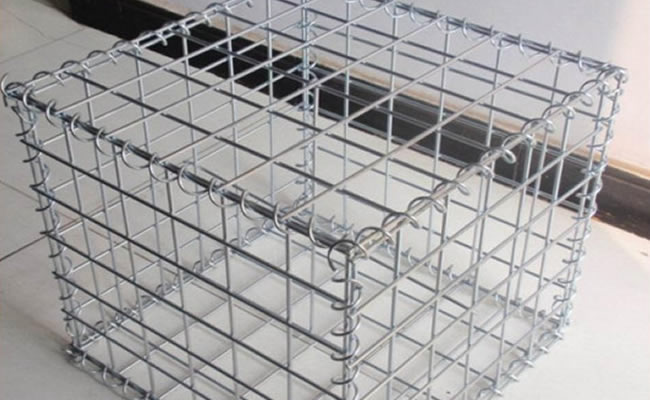

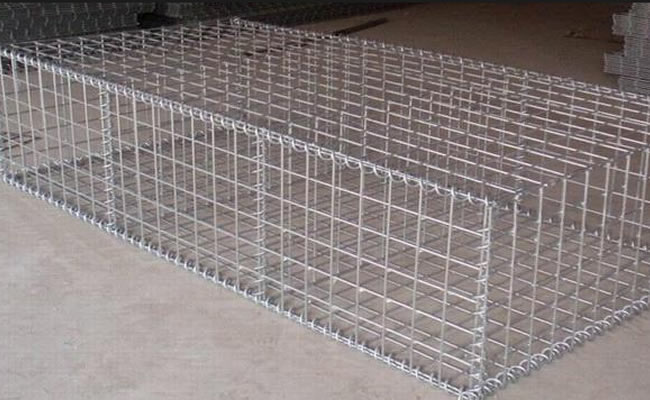

Welded Gabions are made from rigid, lightweight, galvanized steel mesh that allows for machine filling, holds the alignment of the face. Welded gabions are faster to erect and do not need tensioning. This allows them to keep their shape, to be free from bulges and depressions and fit easily against the wall.

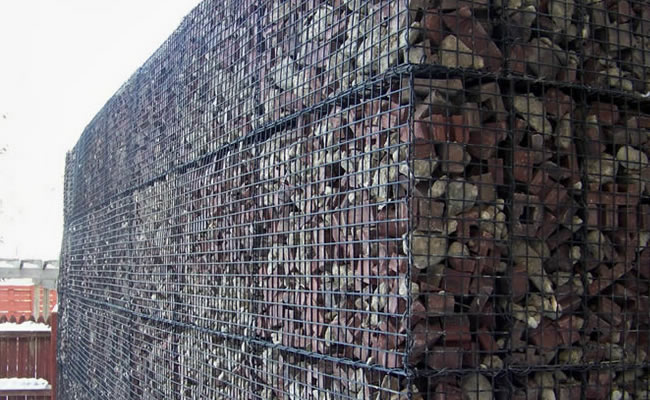

Welded Gabions are used in many situations including the stabilization of earth movement and erosion, river control, reservoirs, canal refurbishment, landscaping and retaining walls.
Welded mesh grill size:
37.5x75mm, 50x50mm, 75x75mm, 100x50mm, 100x100mm
Welded mesh panels size:
500x500mm, 1000x500mm, 1000x1000mm, 1500x500mm
1500x1000mm, 2000x1500mm, 2000x1000mm
or according to requirements.
Wire of welded mesh:
Tensile strength: 380N/mm2 - 550N/mm2
Diameter: 2.5mm-6.0mm
Finishing: heavy duty galvanized or galfan galvanized
Coating weight: 245g-350g
| Welded gabion mesh | ||
|---|---|---|
| Specification in Meters | Diaphragms | Capacity cu. meters |
| 0.5 × 0.5 × 0.5 | 0 | 1.125 |
| 1 × 0.5 × 0.5 | 0 | 1.25 |
| 1 × 1 × 0.5 | 0 | .5 |
| 1 × 1 × 1 | 0 | 1 |
| 1.5 × 0.5 × 0.5 | 0 | 1.325 |
| 1.5 × 1 × .5 | 0 | 1.75 |
| 1.5 × 1 × 1 | 0 | 1.5 |
| 2 × 0.5 × 0.5 | 1 | 1.5 |
| 2 × 1 × 0.5 | 1 | 1 |
| 2 × 1 × 1 | 1 | 2 |
| 3 × 2 × 0.3 (Mattress) | 3 | 1.8 |
| Sets of gabion steps 1m or 2m wide | ||
